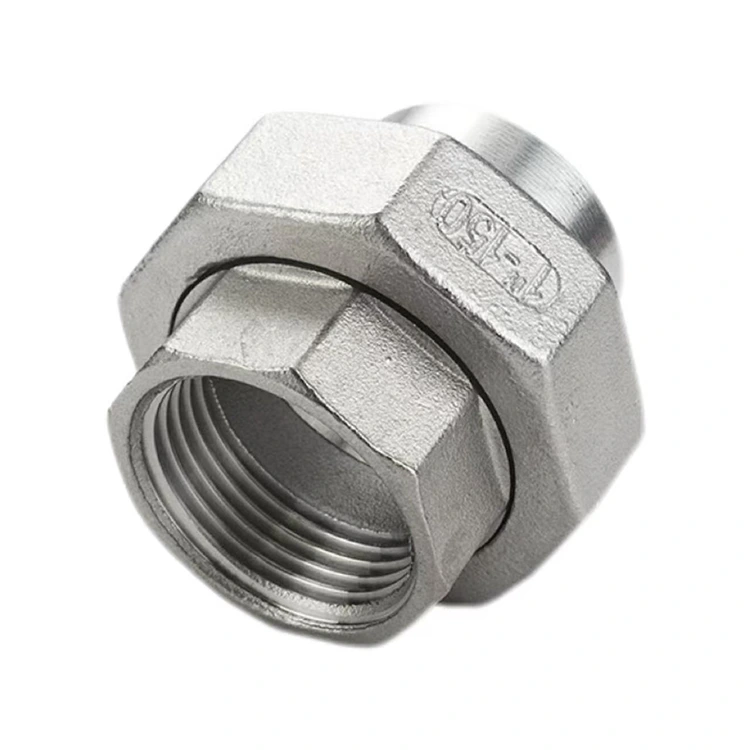

Mukadzi Thread x Butt-Weld Union

Senyanzvi yekugadzira pombi dzekugezera muChina, Shenchi inopa Mukadzi Thread x Butt-Weld Union — inoumbwa pombi yekubatanidza inobatanidza zvisina musono magumo ane shinda yechikadzi ane butt-weld kupera mukati mechikamu chimwe chete.

Sekuita kwepamusoro-soro, basa repakati reFemale Thread x Butt-Weld Union riri mukufambisa iyo isina musono interface pakati petambo dzekubatanidza masisitimu nemapaipi akaiswa welded. Mugumo une tambo dzechikadzi wakanyatsogadzirwa uchishandisa tekinoroji yeCNC yepamusoro, kuve nechokwadi chetambo profiles uye chisimbiso chakavimbika; inobvumira kubatana kwakananga kune ekunze-yakarukwa zvishandiso senge mavharuvhu, faucets, uye chiridzwa.

Iyo butt-weld yekupedzisira inoratidzira pre-machini bevel (chamfer) yakagadzirirwa kusanganiswa zvakananga kune pombi kuburikidza neTIG (argon arc) welding, ichigadzira chisimbiso, chisimbiso-chisimbiso. Yakagadzirwa kubva kumhando yepamusoro yesimbi isina tsvina kana ndarira, iyi mubatanidzwa yakayerwa kumanikidzwa kwekushanda kweinopfuura 1.6 MPa uye inoshanda mukati metembiricha ye -20 ° C kusvika 120 ° C. Inoshandiswa zvakanyanya mumapurojekiti matsva ekuvaka kubatanidza mapaipi makuru ane welded ane tambo dzemapazi akaomeswa, pamwe nemapurojekiti ekugadzirisa kune interface ye welded masisitimu ane tambo dzakarukwa. Nekugona kwayo kwepamusoro-kuita, inopa mhinduro yakapusa asi yakavimbika yezvinetso zvakaoma zvekubatanidza pombi.

Zvigadzirwa Zvinotsanangurwa

Core Chimiro uye Dhizaini Zvakanakisa

1. Integrated Composite Structure

Iyo Shenchi Female Thread x Butt-Weld Union inoratidzira yakasanganiswa yakasanganiswa chimiro dhizaini, inonyatso kusanganisa iyo yechikadzi yakarukwa yekupedzisira uye butt-weld kupera mukati memuviri mumwe. Izvi zvinobvisa kuoma kwakabatana nekushandisa akawanda adapter fittings uye zvakanyanya kuderedza zvingangove zvibodzwa. Chigadzirwa chacho chinoumbwa kuburikidza nekamwe-nhanho yekugadzira maitiro, zvichikonzera dense zvinhu chimiro uye yakakwira mechanic simba.

2. Precision Internal Threading

Iyo yechikadzi yakarukwa yekupedzisira inogadzirwa uchishandisa yakakwirira-chaiyo CNC midziyo; iyo tambo mbiri yakamisikidzwa, uye kubatanidzwa kwakasimba, kuzadzisa zvizere zviyero zvepasi rose zveFemale Thread x Butt-Weld Unions. Iyo tambo yakatarwa inovhara BSPP, BSPT, NPT, uye metric mazinga, kuve nechokwadi kuenderana kwakakwana neyakasiyana-siyana yerume-yakarukwa pombi fittings uye zvishandiso, zvese zvepamba nekune dzimwe nyika.

3. Optimized Butt-Weld End Design

Iyo butt-weld yekupedzisira inoratidzira pre-machini yakajairwa bevel (chamfer), ichibvisa kudiwa kwechipiri pane-saiti kugadzirira panguva yekuisa. Kana yakabatana nepombi kuburikidza neTIG welding, iyo weld yekubatanidza inowana simba rakaenzana neiyo yekutanga zvinhu, ichigadzira inogara, yakakosha pombi system. Iyo pombi madziro ukobvu yakagadziridzwa kuve nechokwadi ese ari maviri welding kutendeseka uye nyore kubata.

4. Intermediate Union Structure

Chigadzirwa chacho chinosanganisira chinobvisika chepakati mubatanidzwa chimiro, chine chaiyo-shinda yekubatanidza uye yemhando yepamusoro yekuisa chisimbiso gasket. Iyi dhizaini inovimbisa kuchinjika panguva yekumisikidza uku uchifambisa kugadzirisa kweramangwana. Kuti iongororwe kana kugadziriswa, pombi inogona kudimburwa nekungosunungura mubatanidzwa wepakati, nekudaro kudzivirira kudiwa kwekucheka kana kubatanidza majoini epombi. II. Key Component Configuration

Iyo Shenchi Female Thread x Butt-Weld Union ine zvinotevera zvakakosha zvikamu:

Muviri: Yakagadzirwa kubva pamhando yepamusoro 304 simbi isina tsvina kana ndarira, chaiyo-yakagadzirwa muchidimbu chimwe chete.

Union Nut: Yakagadzirwa kubva kune yakakwirira-yakasimba zvinhu ine anti-corrosion pamusoro pekurapa; yakagadzirirwa kudzivirira kubviswa kweshinda kunyangwe mushure mekudzokororwa kuungana uye disassembly.

Kuisa Chisimbiso Gasket: Inoumbwa nerabha yakakosha inopesana nekushisa kwakanyanya uye kuchembera; yakadzikwa mukati megero rakadzikiswa kuti ive nechokwadi chekuisa chisimbiso otomatiki.

Mukadzi ane Threaded End: Precision-yakagadzirwa uchishandisa CNC tekinoroji, ine akasiyana tambo zviyero zviripo pakusarudza.

Installation Guidelines

1. Welded End Installation

Chenesa iyo welded yekupedzisira uye pombi bevel. Chengetedza concentricity kutsauka kweisingasviki 0.5mm. Ita root pass welding uchishandisa TIG (GTAW) kuve nechokwadi chekupinda kwakazara pamudzi we weld; mushure mekupedza cap pass, ongorora weld kune chero porosity kana slag inclusions.

2. Mukadzi Threaded End Installation

Iva nechokwadi chekuti nzvimbo yepombi ine shinda yemurume yakachena. Pamawoko chirume chinokwana mumucheto une tambo yemukadzi. Shandisa wrench kuti uisimbise kune yakatsanangurwa mwero torque; iyo yemukati yekuisa chisimbiso gasket inozozvitsikirira kuti iite leak-proof chisimbiso.

3. Chengetedzo

Panguva yekuisa, kudzivirira kupisa kunokonzerwa newelding kubva pakuendesa kunzvimbo yekuisa chisimbiso gasket. Mirira kuti mubatanidzwa we welded utonhore pasi zvachose usati waita chero gungano kana disassembly oparesheni pane nzungu yemubatanidzwa.

Maintenance Guidelines

Kugara Kuongorora: Mwedzi mitanhatu yega yega, tarisa kubatana kwemubatanidzwa kune chero zviratidzo zvekudonha kana tambo dzisina kusimba.

Gasket Replacement: Kana iyo yekuvharisa gasket ichiratidza zviratidzo zvekuchembera kana kupfeka, ingosunungura nyuchi yemubatanidzwa kuti uitsive nyore.

Thread Maintenance: Mushure mekushanda kwenguva refu, shandisa zvishoma zveanti-rust lubricant kune shinda.

Welded End Inspection: Tarisa weld seam kune chero ngura kana kuputika; kana nyaya dzikaonekwa, ita kugadzirisa welding nekukasira.

System Servicing: Kana michina ichida disassembly kuti igadziriswe, ingosunungura iyo yepakati yemubatanidzwa nut-hapana chikonzero chekucheka pombi.

Sei Sarudza Shenchi?

1. Kudzora Unhu Hwakasimba

Hwakakwana hwekutonga kwemhando hunoitwa mukati memaitiro ese, kubva pakutsvagisa zvinhu kusvika pakuongorora kwekupedzisira. Chese chakapedzwa chigadzirwa chinoitwa 100% dimensional verification uye kuvuza kuyedzwa usati wabuda mufekitori.

2. OEM / ODM Customization Services

Isu tinopa akagadziridzwa masevhisi ekusunga, kurongedza, uye chiratidzo chechigadzirwa. Isu tinopa kukurumidza kupindura kugona kune zvisiri-yakajairwa zvakatemwa uye zvakakosha zvinhu zvinodiwa.

3. Yakanyanya Kukwikwidza Fekitori Pricing

Semutengesi akananga-kubva kufekitari, isu tinopa yakaderedzwa mitengo uye tiered vhoriyamu-yakavakirwa kukurudzira.

4. Nguva Yakareba, Win-Win Partnerships

Isu tinoshingairira kutsvaga kumisa hukama hwehukama hwenguva refu nevatengesi vezvitoro, mafemu einjiniya, uye makondirakiti epombi. V. Related Product Recommendations

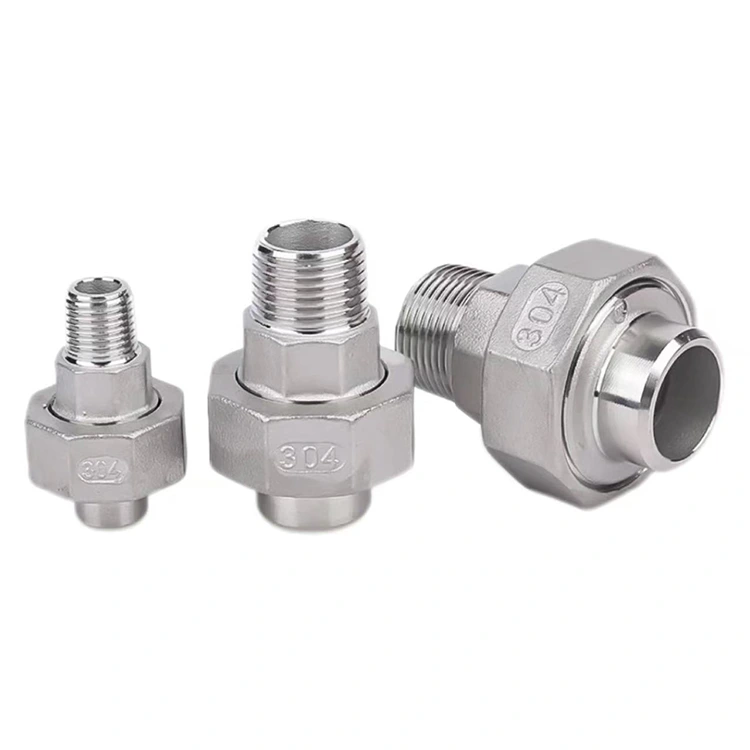

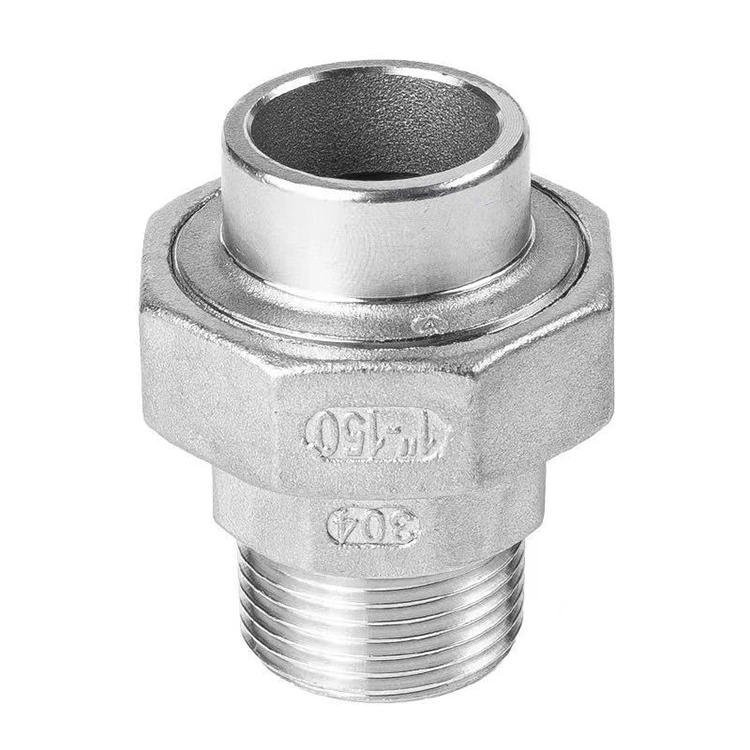

Kambani yedu zvakare inogadzira chigadzirwa chinopindirana mukati meiyo nhevedzano: mubatanidzwa une tambo yekunze kune imwe mugumo uye butt-weld yekubatanidza kune imwe. Imwe magumo inoshandisa tambo yekunze kuti ibatane nemukati yakarukwa, nepo imwe iine butt-weld gadziriso. Zvigadzirwa zviviri izvi zvinopindirana zvakakwana, zvakanyatsogadzirisa zvinodiwa zvekubatanidza kune ese akarukwa uye akaiswa pombi masystem. Isu tinokoka neushamwari vatengi vatsva uye varipo kuti vabvunze uye nekuisa maodha.

Mhedziso

Kusarudza Zhejiang Shenchi Female Thread x Butt-Weld Union—inodadisa Yakagadzirwa muChina-zvinoreva kusarudza dhizaini ine hutsva, kuita kwakavimbika, uye kugadzirisa kuri nyore. Tinotarisira kubatana nevatengesi pasi rese kuti tivake ramangwana rakajeka pamwechete.
