L-Type Pagoda Mvura Pipe Connector

Zvigadzirwa mhando

Senyanzvi yeChinese inogadzira L-Type Pagoda Mvura Pipe Connectors, Shenchi inopa maviri emhando yechigadzirwa mhando:

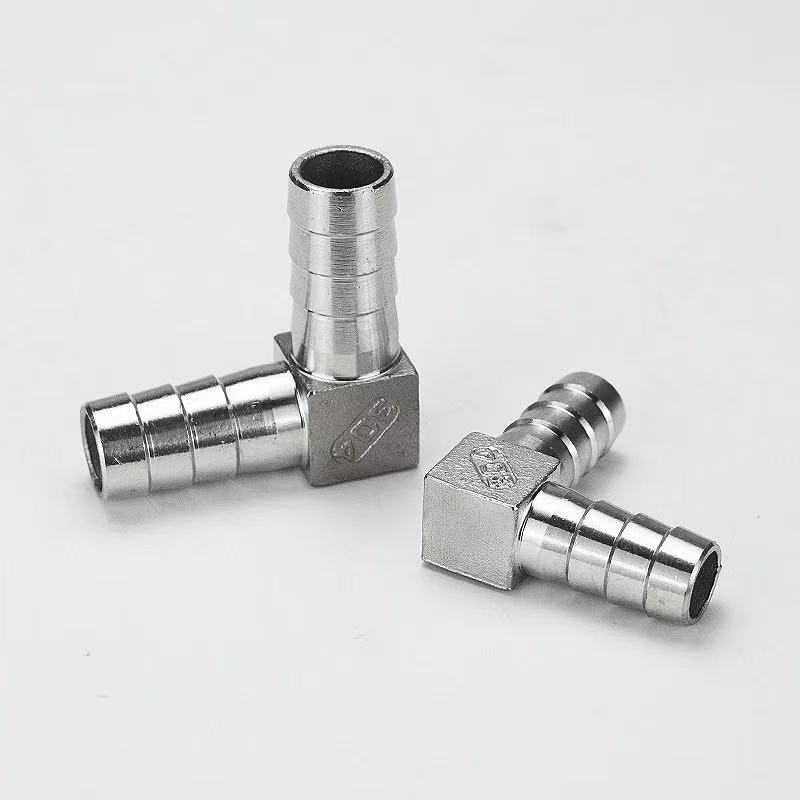

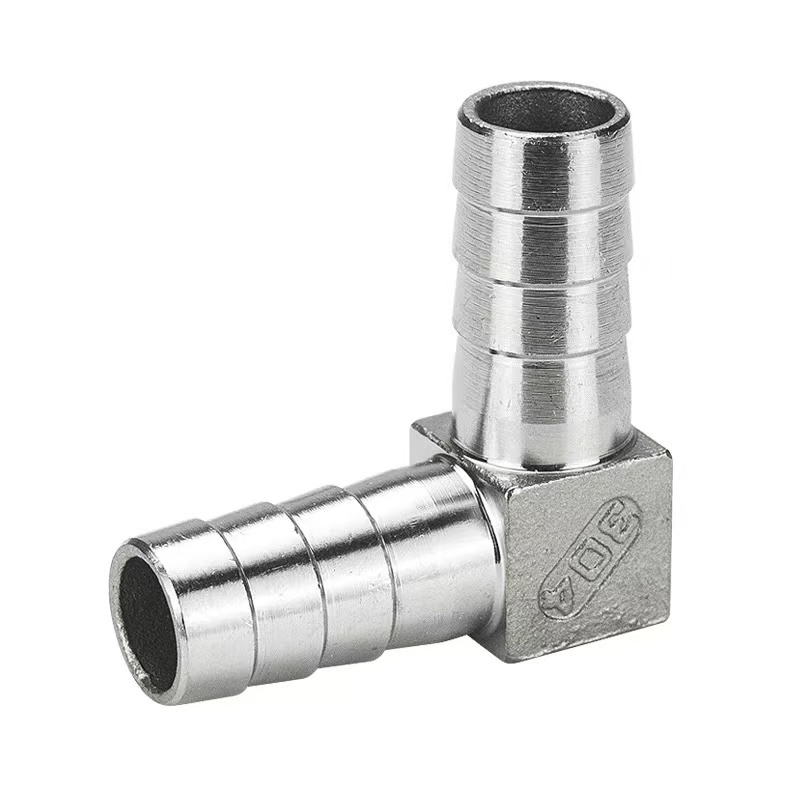

L-Type Pagoda Mvura Pipe Connector: Migumo miviri ine minzwa pagoda chimiro, yakagadzirirwa kugadzira 90-dhigirii inotungamira yekubatanidza pakati pemahosi maviri anochinjika.

L-Type Male Threaded Pagoda Connector: Imwe magumo ine minzwa pagoda chimiro chekubatanidza kune inochinjika hose, nepo imwe magumo ine ekunze (yechirume) shinda, yakagadzirirwa kugadzira 90-dhigirii inotungamira yekubatanidza pakati pehosi uye chidimbu chemidziyo ine mukati (yechikadzi) yakarukwa chiteshi.

Marudzi ese ari maviri ane dhizaini ye90-degree angled ine zvakafanana zvirevo zveiyo barbed pagoda inopera. Iwo anowanikwa mukusarudza kwezvinhu: 304 simbi isina tsvina, 316L simbi isina tsvina, kana ndarira. Musiyano wakakosha uri munzira yekubatanidza: yekutanga inofambisa yakananga hose-to-hose yekubatanidza, nepo iyo yekupedzisira ichifambisa yekuchinjana kubatanidza pakati pehosi nechidimbu chemidziyo, nekudaro ichipa inochinjika sarudzo sarudzo kuti dzienderane akasiyana ekuisa mamiriro.

Ndeupi musiyano uripo pakati peL-Type Pagoda Mvura Pipe Connector neL-Type Male Threaded Pagoda Connector?

Musiyano Wakakosha: Iyo Shenchi L-Type Pagoda Mvura Pipe Connector inoratidzira maviri-barb interface (yese migumo ine minzwa pagoda misoro, yakagadzirirwa kubatanidza zvakananga kune anochinjika hoses). Iyo L-Type Male Threaded Pagoda Connector inoratidzira shinda yekunze kune imwe mugumo uye ine barbed pagoda kune imwe, yakagadzirirwa kubatanidza hose inochinjika kune yakaoma pombi kana muviri wevharuvhu une shinda dzemukati. Shenchi’s high-performance L-Type Pagoda Mvura Pipe Connectors inogadzirwa kubva kundarira kana 304 / 316L simbi isina tsvina; yavo 90-dhigirii yekurudyi-kona chimiro chakanakira kutungamirazve mapaipi. Iyo mbiri-barb dhizaini inovimbisa yakasimba, yakachengeteka kubata—kunyanya kana akabatanidzwa ne hose clamps—kudzivirira detachment uye leakage. Aya mafirita anopa zvakanakisa kuramba kumanikidzwa, ngura, uye kuchembera. Iyo 316L Stainless simbi musiyano wakanyatsokodzera nzvimbo dzine ngura zvakanyanya, senge idzo dzinosanganisira mvura yegungwa kana kugadzirwa kwemakemikari. Zviri nyore kuisa, aya mafittings akanakira yakaderera-pressure hose yekubatanidza mupombi, pneumatic masisitimu, uye maindasitiri fluid application, inopa kugadzikana kwakasiyana uye kusimba.

Zvigadzirwa Zvinotsanangurwa

Installation Instructions

Iyo Shenchi brand L-Type Pagoda Mvura Pipe Connector, yakagadzirwa kune yenyika zviyero, iri nyore kuisa. Kutevera matanho ari pasi apa kunovimbisa kubatana kwakavimbika:

Danho 1: Hose Kucheka

Shandisa yakasarudzika hose cutter kucheka kupera kwepombi yakatwasuka uye yakati sandara, kudzivirira ma angled kucheka kana maburrs, kuve nechokwadi chakanyatsokwana kurwisa pagoda barbs. Kune dzakarukwa kana dzakasimbiswa hoses, zvinokurudzirwa kushandisa nzira inopisa-yekucheka kuti usimbise mipendero uye kudzivirira kuparara.

Danho 2: Pagoda End Connection

Pinza hose yakatwasuka panoperera pagoda kusvikira hosi yatarisana nehwaro hwepagoda. Mapagoda barbs ane dhizaini yakatsikwa inogadzira mhete dzakawanda dzekuvharisa kana hose yaiswa. Pamusoro pekushandiswa kwepamusoro-soro, chengetedza kubatana uchishandisa simbi isina tsvina hose clamp kana spring clip; iyo clamp inofanira kuiswa pakati pechipiri neyechitatu pagoda barbs.

Nhanho 3: Threaded End Connection

Sarudza nzira yakakodzera yekuisa chisimbiso kumagumo ane thread zvichienderana nezvaanoreva: G-shinda (parallel pipe threads) inoda rubber kana copper gasket yekuisa chisimbiso; NPT kana R-shinda (tapered pombi shinda) inoda kuputira 3–5 kutendeuka kwePTFE shinda seal tepi isati yaomesa. Paunenge uchiomesa, isa chipanera kune hexagonal body yefitting kudzivirira torque kubva pakuendeswa kune hose yekubatanidza poindi.

Nhanho 4: Kuedza Kudzvinyirira

Kana wapedza kuisa, ita static pressure test at 1.5 times the system's working pressure. Kana pasina kuvuza kunoonekwa mushure mekuchengetedza iyi dzvinyiriro kwemaminitsi matatu, gungano rakagadzirira kushandiswa. Maitirwo ekuisa einowirirana L-Type Male Threaded Pagoda Connector mune ino nhevedzano yakafanana-inosiyana chete nemhando yeshinda-inobvumira sarudzo inochinjika zvichibva pane chaiyo interface zvinodiwa.

Minda Yekushandisa

1. Midziyo Yekuchenesa Mvura

Iyo L-Type Pagoda Mvura Pipe Connector yakagadzirirwa 90-dhigirii inotungamira kubatanidza pakati pePE nePU tubing mune zvinonatsa mvura, zvinopfavisa mvura, uye RO (Reverse Osmosis) masisitimu. Kana yakagadzirwa kubva ku316L simbi isina tsvina, inosangana nechikafu-giredhi rehutsanana zvinodiwa. Inopindirana L-Type Male Threaded Pagoda Connector mukati meiyo yakafanana nhevedzano inowanikwa kune maapplication apo iyo yekushandisa interface ine yemukati (yechikadzi) shinda.

2. Pneumatic Automation Systems

Inoshandiswa kupneumatic tubing routing mumhepo compressors, pneumatic valve manifolds, uye otomatiki magungano mitsara. Chimiro chayo chakaita se-L chinochengetedza nzvimbo yemidziyo yemukati, nepo kuenderana neanokurumidza-kubatanidza macollets anofambisa kukurumidza kusangana, disassembly, uye kugadzirisa.

3. Sanitary Ware uye Midziyo Yepamba

Inobatanidza mapombi ekupinza emvura ezvimbuzi zvakangwara, madhishi, michina yekuwachisa, uye zvimwe midziyo yakafanana. Kana yakagadzirwa kubva kundarira, iyo L-Type Pagoda Mvura Pipe Connector inopa yakanakisa yekupisa conductivity, ichiita kuti ive yakakodzera mitsara yemvura inopisa. Iyo L-Type Male Threaded Pagoda Connector yakagadzirirwa kugarisa huwandu hwakakura hwema interfaces anowanikwa mumidziyo inotengeswa kunze kwenyika.

4. Industrial Cooling uye Lubrication Systems

Inoshandiswa mumichina yekushandisa kutonhora mitsara uye hydraulic lubrication masisitimu. Chivako chesimbi isina tsvina chinopa kusimba kwepamusoro, kugonesa kuita kwakavimbika munzvimbo dzinodiwa dzinosanganisira mhute yemafuta, zvinwiwa zvekucheka, uye mamwe mamiriro ekushanda akaomarara.
