Kubatana kwepombi kwemazuva ano kunofanirwa kuita zvinopfuura kungobatanidza machubhu maviri. Inofanirwa kuchengetedza chisimbiso chekuisa chisimbiso, kutsungirira kufamba uye kumanikidzwa, kukodzera iyo yakasarudzwa pombi zvinhu, uye kuramba inoshanda panguva yekuisa. APress-Fit Piping Fittinginowana mubatanidzwa kuburikidza nekudzora mekiniki kudzvanya pane kuita shinda, brazing, kana welding. Gwaro iri rinotsanangura kuti kubatana kunoshanda sei, nei kuisa chisimbiso geometry zvine basa, maitiro ekusarudza zvinhu uye maprofile, ndeapi matanho ekuisa anofanirwa kutariswa, uye ndeapi mamiriro ekushandisa anofanirwa kuongororwa usati wataura yakazara pombi system.
Zviri Mukati
Sarudza chikamu chekusvetukira kwachiri- 1. Chii chinoita kuti Press Connection Technology ive yakasiyana?
- 2. Iyo Joint Yakagadzirwa Sei?
- 3. Sei Kuisa Chisimbiso System Iine Basa?
- 4. Ndezvipi Zvishandiso Zvinokodzera Mamiriro Akasiyana ePiping?
- 5. Aya Mabatanidzo Anoshandiswa Kupi?
- 6. Kukodzera Kunofanira Kusarudzwa Sei?
- 7. Kuiswa Kunofanira Kudzorwa Sei?
- 8. Ndezvipi Zvikanganiso Zvekuisa Zvinofanira Kudziviswa?
- 9. Ko Joint Quality Inogona Sei Kusimbiswa?
- 10. Press Joining Inofananidzwa Sei Nedzimwe Nzira?
- 11. Chii Chinofanira Kutaurwa Neprojekiti Inosanganisira?
- 12. Mibvunzo Inowanzo bvunzwa
Chii chinoita kuti Press yekubatanidza Tekinoroji ive yakasiyana?
Ijoini yakadzvanywa inoshandura nzira iyo pombi system inounganidzwa nekuti iyo yekubatanidza inoumbwa nemichina panzvimbo yekuiswa. Iyo pombi inopinzwa mune yakagadziridzwa yakaringana, chishandiso chinomisikidzwa pamusoro penzvimbo yakatarwa yekutsikisa, uye iyo yekuisa inomanikidzwa mune inodiwa geometry. Mhedzisiro yacho haina kutsamira pamurazvo, yakanyungudutswa yekuzadza, kana kurapa kunamira.
Nheyo yekutanga iri nyore, asi iyo mainjiniya kuseri kwejoinhi yakanyatsojeka kupfuura maitiro ekuona anoratidza. Iyo yekukodzera inofanirwa kuve neyakakodzera yemukati chimiro, chisimbiso chinofanirwa kugara munzvimbo yakarongwa, pombi inofanirwa kusvika pakadzika kwakadzika yekuisa, uye chishandiso chekutsikirira uye chimiro cheshaya chinofanira kuenderana nehurongwa. Kubatanidzwa kwakadzvanywa saka isystem yakakwana kwete yekukodzera iyo inogona kupetwa nechero chishandiso chero nguva.
Iyi nzira inonyanya kubatsira apo purojekiti inoda kudzokororwa kuungana nekukanganisa kushoma kwemafuta. Gwaro rereferenzi kubva kuEuro Inox rinotsanangura kujoinwa kwekudhinda semuchina wekuita umo iyo yekukodzera inomanikidzwa nechombo chakakodzera, ine hydraulic tightness inowanikwa neO-ring sealing system. Gwaro rimwe chetero rinotaura kuti shaya dzekushandisa dzinofanirwa kuenderana neiyo yakakodzera geometry.
Nei kusavapo kwewelding kuchichinja maitiro ekuisa
Zvechinyakare zvakasungwa kana brazed zvinongedzo zvinoda kupisa manejimendi, kudzora opareta, uye kuwedzera kutarisisa kwakatenderedza zvinhu zvinobvira. Press joining inoitika pane ambient tembiricha. Izvi zvinoita kuti zvive nyore kushanda muzvivakwa zvinogarwa nevanhu, nzvimbo dzekudzorera, makamuri emidziyo, uye nzvimbo dzine marimi akavhurika asingadiwi.
Kubatsira kunoshanda hakusi kungomhanya. Iyo inodzokororwa mechanical process inogona kuderedza nhamba yezvinosiyana zvinopesvedzera mubatanidzwa wapera. Kana nyanzvi dzangonzwisisa sisitimu uye kushandisa michina yakatenderwa, kutevedzana kwekubatanidza kunova nyore kumisikidza pane zvakadzokororwa kuiswa.
Nei kubatanidza geometry zvine basa
Yese yakakodzera mbiri inogadzira yakatsanangurwa compression pateni. Iyo pateni inosarudza kuti chubhu inochengetwa sei uye kuti chinhu chekuisa chisimbiso chinomanikidzwa sei. Vagadziri vakasiyana vanogona kushandisa akasiyana mapikicha ejometri, saka chishandiso chakagadzirirwa imwe sisitimu hachifanirwe kungoitwa sechinopindirana neimwe.
Zvebasa rekutsanangura, mubvunzo wakakodzera hausi chete "Ndeipi saizi yakakodzera inodiwa?" asi zvakare "Ndeipi yakakwana yekubatanidza system inotenderwa pombi iyi, chisimbiso, chishandiso, kirasi yekumanikidza, uye kushandisa?"
Iyo Joint Yakagadzirwa Sei?
Kunzwisisa kurongeka kwemukati kunobatsira kutsanangura kuti nei zvakadzvanywa zvinongedzo zvichigona kuramba zvakatsiga mushure mekunge chishandiso chekuisa chabviswa. Iyo inooneka inokwana chikamu chimwe chete chejoinhi. Magumo epombi, socket yakafanira, gorofu yekuisa chisimbiso, O-ring, press contour, uye madziro epombi anotsigira zvese zvinopa mubairo wapera.
Pipe End
Iyo pombi inofanira kutemwa, kugadzirirwa, uye kuiswa kune yakadzama yakadzama pasina kukuvadza pamusoro kana kukanganisa kumagumo.
Chisimbiso Zone
Iyo O-ring kana chisimbiso chakatenderwa chinogara pane yakatsanangurwa groove uye inosarudzwa kuti ienderane neinofambiswa svikiro.
Press Zone
Chishandiso chinomanikidza muviri wakakodzera panzvimbo yakatarwa uye inoumba iyo mechanic yekuvhara geometry.
Basa resoketi yakakodzera
Iyo soketi inofanirwa kugamuchira pombi zvakanaka ichichengetedza hukama hwakatarisirwa pakati pemadziro epombi uye chinhu chekuisa chisimbiso. Zviyero zvayo, kudzika kwekuisa, uye mamiriro emukati wepamusoro anokanganisa kubatana. Kukodzera kunogona kutaridzika zvakanaka kunze uku kuchiri kuda kunyatsotariswa mukati.
Basa repombi
Iyo pombi haisi chikamu chekungoita. Iyo yekunze dhayamita, ukobvu hwemadziro, zvinhu zvemukati, kutenderera, uye mamiriro epamusoro zvese zvinokanganisa maitiro ejoini panguva yekudzvanya. Kucheka nenzira isina kufanira kunogona kusiya mabhura, mipendero yakapinza, kana kukanganisa kunokanganisa kuisa uye kuvhara.
Basa rechishandiso chekudhinda
Chishandiso chehunyanzvi chekutsikirira chinoshandisa deformation inodzorwa kune yakakodzera. Iyo shaya inofanirwa kuenderana neyakakodzera mbiri, uye chishandiso chinofanira kuchengetedzwa zvinoenderana nemirairo yayo yekushandisa. Chishandiso chakakodzera hachingodzvanyiriri kubatana; inogadzira iyo inotarirwa geometry.
Musiyano iwoyo wakakosha. Simba rakawandisa, chimiro cheshaya chisiri icho, kana chishandiso chisina kuchengetedzwa zvakanaka chinogona kuburitsa mubatanidzwa unoratidzika wakadzvanywa asi usingaenderane neyakagadzirwa chimiro. Yakanaka yekuisa tsika saka inobata chishandiso sechikamu cheinjiniya yekubatanidza system.
Sei Chisimbiso System Chine Basa?
Chinhu chekuisa chisimbiso ndechimwe chezvinhu zvakakosha mukubatanidza kwakadzvanywa nekuti kukiya kwemakanika uye kuvhara kwemvura kunoita mabasa akasiyana. Muviri wakakodzera unochengeta pombi, nepo chisimbiso chinovhara nzira ine microscopic pakati penzvimbo dzekubatana.
Kuenderana kwezvinhu kunofanirwa kutariswa kubva pakuona kweiyo chaiyo sevhisi svikiro, tembiricha, kudzvanywa, kuchenesa maitiro, uye inotarisirwa nharaunda yekushanda. Mushonga wekuvharisa unoshanda zvakanaka nemvura haungofanire kuenderana nekemikari yega yega, mafuta, gasi, kana fluid process.
Euro Inox inocherekedza kuti akasiyana-sealing-mhete zvinhu zvinoshandiswa kune akasiyana midhiya uye kuti chisimbiso zvinhu zvinoda kuramba kune inofambiswa svikiro. Izvi zvinosimbisa mutemo unoshanda wekutsanangura: usambofa wakasarudza chisimbiso wakazvimirira kubva pachikumbiro.
Chii chinoitika kana chisimbiso chisina kumira zvakanaka?
Chisimbiso chakamonyoroka kana chakadzingwa chinogona kugadzira isina kuenzana yekusangana pateni. Iyo yekukodzera inogona kuramba ichitaridzika yakajairika kubva kunze, asi yekuisa chisimbiso inogona kunge isiri yunifomu. Ichi ndicho chikonzero chekutarisa kwekuona usati wadzvanya kwakakosha, kunyanya pakudzokorodza kuisa uko matekiniki anogona kufamba nekukurumidza kubva pane imwe yekubatanidza kuenda kune inotevera.
Sei masisitimu ekuzivikanwa kwechisimbiso anogona kubatsira
Mamwe masisitimu ekubatanidza anoshandisa kodhi yekuona kubatsira vanoisa kuona chikamu chakanangwa chisimbiso. Iyo chaiyo coding inosiyana pakati pevagadziri. Mukuita, kuzivikanwa kwakajeka kunogona kuderedza zvikanganiso zvekusarudza kana zvisimbiso zvakati wandei kana zvikamu zvesevhisi zviripo pachirongwa chimwe chete.
Ndezvipi Zvishandiso Zvinoenderana Nemapaipi Mamiriro Akasiyana?
Kusarudzwa kwezvinhu kunofanira kutanga nenharaunda yebasa pane kutaridzika chete. Iyo yekukodzera, pombi, uye yekuisa chisimbiso chinhu chinofanirwa kuongororwa sehurongwa hunoenderana. Corrosion exposure, fluid chemistry, mechanical loading, yekuisa nharaunda, uye tembiricha zvese zvinopesvedzera sarudzo yakakodzera.
Simbi isina simbi yekuda nharaunda dzemvura
Simbi isina simbi inonyanyobatanidzwa nekudzvanywa kwepombi nekuti inosanganisa kuumbwa nekudzivirirwa nekuora. Inogona kushandiswa mune akawanda pombi dzemvura, kudziyisa, maitiro, uye gasi zvikumbiro apo yakasarudzwa giredhi uye yakazara sisitimu yakakodzera kune sevhisi mamiriro.
Kupokana kwayo nekuora kunogona kunyanya kubatsira mukushandisa uko kuchena kwemukati, kugadzikana kwepamusoro penguva refu, kana kuratidzwa kune hunyoro nharaunda zvine basa. Zvisinei, "simbi isina tsvina" haifaniri kubatwa segiredhi rimwe chete repasi rose. Alloy kuumbwa uye chaiyo fluid nharaunda ichiri kuda kutariswa.
Mapoka ezvinyorwa zvakajairika
| Material Group | Typical Characteristics | Mafungiro Okushandisa | Specification Focus |
|---|---|---|---|
| Simbi isina ngura | Corrosion-resistant, yakasimba, inokodzera kudzorwa dhizaini deformation | Mvura, kudziyisa, masevhisi ekugadzirisa, gasi rakasarudzwa uye masisitimu emaindasitiri | Giredhi, kuenderana kwepakati, kudzvanywa, tembiricha, mamiriro epamusoro |
| Mhangura | Kuumbwa kwakanaka uye kushandiswa kwakasimba mumapombi masisitimu | Mvura, kudziyisa, HVAC uye inoenderana sevhisi mamiriro | Tube standard, yakafanira chimiro, chisimbiso kusarudzwa, kujoinha chishandiso |
| Carbon Steel | Rigid metallic kuvaka ine system-inotsamira pamusoro pekudzivirira | Kudziya, kuvharwa-loop masisitimu, akasarudzwa maindasitiri masevhisi | Corrosion dziviriro, ukobvu hwemadziro, coating condition, medium |
| Composite kana Specialized Tubes | Chikumbiro-chaiyo chivakwa chine akasiyana ekubatanidza zvinodiwa | Chivakwa chakasarudzwa uye masisitimu ekufambisa-mvura | Tube kuenderana, nzira yekuisa, chisimbiso uye yakabvumidzwa chishandiso |
Boka rezvinyorwa chete haritsananguri kukodzera kwesevhisi. Gara uchifananidza iyo yakazara yekubatanidza sisitimu kune mamiriro eprojekiti uye anoshanda ehunyanzvi zvinodiwa.
Tsanangudzo inobatsira inofanirwa kuona iyo pombi zvinhu, zvinhu zvinofanirwa, zvekuisa chisimbiso, chimiro chekubatanidza, zita rekuti dhayamita, chinodiwa chekumanikidza, tembiricha yemhando, uye chiyero chinoshanda. Kusiya imwe yeiyi isina kutsanangurwa inogona kugadzira kusanzwisisika gare gare panguva yekutenga kana kuisa.
Aya Mabatanidzo Anoshandiswa Kupi?
Kubatanidzwa kwakadzvanywa hakugumiri kune imwe sevhisi yekuvaka. Iyo tekinoroji inogona kutsigira akawanda emvura uye gasi masisitimu kana chigadzirwa chakasarudzwa chabvumidzwa kushandiswa. Sarudzo yepakati inogara inoenderana nesevhisi pane iyo yekuona kufanana kwezvigadziriso.
- Mvura Yemumba:Inoshandiswa pakugovera mvura inopisa uye inotonhora uko iyo yakazara pombi uye yekukodzera system yakakodzera kune yakanangwa sevhisi yemvura.
- HVAC:Inobatsira pakudziya, kutonhora, uye inoenderana nekutenderera mitsetse uko kudzvanywa, tembiricha, uye mvura mamiriro anowira mukati meiyo system chiyero.
- Mvura Yekugadzira:Inogona kutsigira kutenderera kwemaindasitiri kana mitsara yekushandisa kana kuenderana kwezvinhu uye kuchena zvinodiwa zvakaongororwa.
- Air Compressed:Masisitimu akakodzera anogona kupa anodzokororwa majoini emagetsi ekuparadzira mhepo network.
- Gasi Sevhisi:Masisitimu chete akanyatso kutenderwa kushandiswa kwegasi akakodzera ndiwo anofanirwa kushandiswa, aine chisimbiso chakakodzera, pombi, chishandiso, uye maitiro ekuisa.
- Drainage:Mamwe masisitimu esimbi anodhinda anoshandiswa mukumisikidza kwemvura, zvichienderana nedhizaini yehurongwa uye zvinodiwa zvekubatanidza.
- Specialty Industrial Lines:Masisitimu akasarudzwa anogona kuiswa kune zvimwe zvinwiwa kana magasi kana kuenderana kwemakemikari uye kumanikidzwa zvinodiwa zvinosimbiswa.
Nhungamiro yeindasitiri inocherekedza pombi dzemvura, kudziyisa, kugadzira mvura, mvura inotonhorera, dhizaini, gasi mafuta, mhepo yakamanikidzwa, uye mamwe masevhisi ane hunyanzvi senzvimbo dzekushandisa dzestainless-simbi press-fit masisitimu, nekukodzera kunoenderana nedhizaini chaiyo uye mamiriro ekushanda.
Nei application classification ichifanira kuuya pamberi pekusarudzwa kwechigadzirwa
Zvigadziriso zviviri zvine saizi yezita imwechete zvinogona kuda zvisimbiso zvakasiyana, kudzvanywa ratings, kana nzira dzekubvumidza zvinoenderana nepakati. Mvura yekubatanidza uye yekubatanidza gasi inogona kutaridzika zvakafanana kunze uku ichida zvinhu zvakasiyana uye zvigadziriso zvekuisa.
Kune zvikwata zveinjiniya, kufambiswa kwebasa kwakaringana saka application kutanga, system yechipiri, chikamu chechitatu. Izvi zvinodzivirira kukanganisa kwakajairika: kusarudza yakakodzera chete nekuti hukuru hwayo hunoita sehunoenderana.
Chimiro Chinofanira Kusarudzwa Sei?
Sarudzo inova nyore zvakanyanya kana iyo yakatarwa ikatsemurwa kuita nhevedzano yezvinoyerwa zvinodiwa. Panzvimbo pekutanga nemufananidzo wechigadzirwa, tanga nemamiriro epombi uye shanda wakananga kune chikamu.
- Tsanangura chiripakatiZiva kuti mutsara wacho unotakura mvura inonwiwa here, mvura yekudziisa, mvura inotonhorera, mweya wakadzvanywa, gasi, mvura inoyerera, kana imwe svikiro.
- Tsanangura hamvuropu yekushandisa:Rekodha yakajairika uye yakanyanya tembiricha, kumanikidza kushanda, uye chero mamiriro enguva pfupi anogona kukanganisa majoini.
- Simbisa hukuru hwepombi:Simbisa saizi yezita, chaiyo yekunze dhayamita, ukobvu hwemadziro, uye dimensional kushivirira.
- Fanisa zvinhu zvakakodzera:Sarudza chinhu chinogona kushivirira nharaunda yebasa uye chero mamiriro ekunze ekunze.
- Sarudza chisimbiso:Simbisa kuenderana neyakafambiswa yepakati uye tembiricha renji.
- Simbisa chimiro chekubatanidza:Ita shuwa kuti chimiro chakakodzera uye kudzvanya shaya isanganiswa inotenderwa.
- Tarisa nzvimbo dzekubatanidza:Wongorora kana sisitimu yacho inoshandisa kudzvanya-ku-kudzvanya, kudzvanya-kune-shinda, kudzvanya-ku-vhavha, kana imwe gadziriro yeshanduko.
- Tarisa zviyero uye mvumo:Matanidza sisitimu kune zviyero zvinodiwa nemusika wekuenda, kodhi yekuvaka, kana kutsanangurwa kweprojekiti.

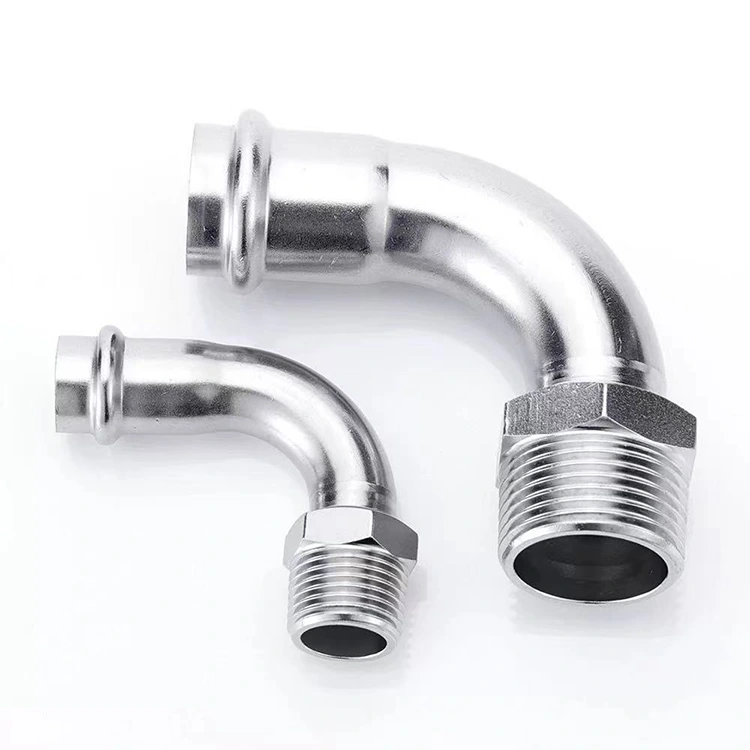

Muenzaniso werudzi rwechigadzirwa
Imwe yekutengeserana yakarongwa-stainless-simbi renji muchikamu ichi inovhara saizi kubva pa1/8 inch kusvika 4 inches, yakaenzana neDN6 kuburikidza neDN100, ine yakataurwa tembiricha yekushanda ye -20 ° C kusvika 120 ° C uye yezita rekumanikidza reti yePN16. Ruzivo rwechigadzirwa rumwechete runonyora ANSI, BS, DIN, ISO, uye JIS kurongeka pamwe neNPT, BSP, BSPT, uye DIN shinda sarudzo. Aya manhamba akanangana nechigadzirwa uye haafanire kugadzirwa kune ese akatsikirirwa pombi system.
Musiyano iwoyo unokosha nekuti chiyero chezita chimwechete hachivimbise kugona sevhisi imwe chete. Kukodzera kwakayerwa kune imwe dzvinyiriro kana tembiricha renji inogona kunge isina kukodzera kana mamiriro ehurongwa achinja. Zvakatsikirirwa zvinofanirwa kuverengerwa semiganho yezvakatemerwa zvigadzirwa, kwete sehukoshero hwepasi rose hwetekinoroji.
Kusarudza pakati pekubatanidza, gokora, tee, reducer, uye cap
Chimiro chakakodzera chinofanira kuratidza basa rinodiwa nepombi. Kubatana kwakatwasuka kunobatanidza zvikamu zvepombi zvakagadziriswa. Gokora rinoshandura kwakananga. Tee inogadzira bazi. A reducer shanduko pakati pemadhayamita akasiyana. Chivharo chinovhara pombi inopera. Specialty adapters inogona kusanganisa akati wandei mabasa, sekuchinja ese ari maviri kutungamira uye yekubatanidza mhando.
Kushandisa iyo chaiyo geometry inoderedza zvisina kufanira nzira yakaoma. Iyo zvakare inochengeta sisitimu iri nyore kuongorora nekuti chimwe nechimwe chikamu chine basa rakajeka mune network.
Kuiswa Kunofanira Kudzorwa Sei?
Kuiswa kwakanaka ndiyo poindi iyo dhizaini yeinjiniya inova chaiyo yakabatana kuita. Kunyangwe kurongeka kwakanyatso kutaurwa kunogona kutadza kuita sezvakarongwa kana pombi inopera ikakuvadzwa, kudzika kwekuisa kwakashata, kana chishandiso chekutsikirira chikakanganiswa.
Kuyera uye Cheka
Cheka chubhu yakaenzana uye chengetedza yakachena, isina kukanganiswa kumagumo yakakodzera kuiswa.
Gadzirira Magumo
Bvisa maburrs uye ongorora nzvimbo kuitira kuti chisimbiso chisakanganiswa panguva yekuiswa.
Maka Zvakadzika
Shandisa iyo yakatsanangurwa yekuisa-yakadzama nzira kuita kuti zvigaro zvionekwe usati wadzvanya.
Isa Tube
Sunda chubhu mukati mekukodzera kusvika yasvika panzvimbo inodiwa pasina kumanikidza kubatana kusingakodzeri.
Isa Chimbo
Shandisa shaya yakatenderwa kana chimiro uye woiisa panzvimbo inotsanangurwa mugadziri-yakatsanangurwa yekudhinda.
Pedzisa Press
Ita iyo yakazara kutenderera kutenderera uye ongorora iyo yakapedzwa yekubatanidza usati waenda kune inotevera yekubatanidza.
Nei kugadzirira kuchida kutariswa zvakanyanya sekumanikidza
Zvinoyedza kuona kudzvanya senguva yakaoma uye zvese zviri pamberi pazvo semaitiro. Mukuita, kugadzirira kwepombi kune mhedzisiro yakananga pane yekuisa chisimbiso interface. Burr inogona kukwenya chinhu chekuisa chisimbiso. Imwe chubhu yekunze-ye-round inogona kuita kuti kuisa kunetse. Nzvimbo yakasvibiswa inogona kukanganisa mamiriro ekugara.
Nechikonzero ichi, maitiro akasimba esaiti anowanzo sanganisira kucheka kwekuongorora, kubvisa, kuongorora chisimbiso, yekuisa-yakadzama simbiso, kuongororwa kwechishandiso, uye yekupedzisira kubatanidzwa.
Tool kuenderana hakusi sarudzo
Maturusi ekudhinda uye shaya anogadzirwa akatenderedza chaiwo ekubatanidza profiles. Euro Inox inocherekedza kuti shaya dzinochinjika dzematurusi emagetsi dzinoda kubvumidzwa nemugadziri akakodzera nekuti iyo yakamanikidzwa geometry inogona kusiyanisa pakati pemasisitimu.
Iyi ndeimwe yeakanyanya kukosha ekumisikidza kudzora kune makondirakiti anoshanda mumhando dzakawanda kana mhuri dzakakodzera. Maturusi anotaridzika zvakafanana haaite otomatiki anongo gadzira zvakafanana kudzvanya geometry.
Ndezvipi Zvikanganiso Zvekuisa Zvinofanira Kudziviswa?
Matambudziko akajairika haakonzerwi nekushaya simba kusinganzwisisike mune yekubatanidza musimboti. Zvinobva mukutsauka kudiki mukugadzirira, kuenderana, kana kutonga kwemaitiro.
- Musanganiswa wakashata wepombi:Kushandisa chiyero chinotaridzika chakafanana asi chisiri cheiyo imwechete yakatenderwa sisitimu inogona kukanganisa kukwana uye kuiswa chisimbiso.
- Chisimbiso chisina kururama:Kusarudza chisimbiso chete nehukuru uku uchifuratira svikiro rinofambiswa kunogona kugadzira dambudziko rekuenderana.
- Kupera kwepombi yakakuvadzwa:Mabhura, zvikwambo, kukanganisa, kana kusvibiswa zvinogona kukanganisa kuisa uye kuiswa chisimbiso.
- Kudzika kusina kukwana:Iyo chubhu inomira pfupi inogona kusagara munzvimbo dzakagadzirwa dzemakanika uye yekuisa chisimbiso.
- Wrong press shaya:Rushaya runotaridzika rwakafanana runogona kuburitsa iyo isiriyo deformation profile.
- Zvisina kukwana kutenderera kwenhau:Chishandiso chinofanirwa kupedzisa kutevedzana kwakataurwa pachinzvimbo chekumiswa nguva isati yakwana.
- Kusvetuka kuongorora:Kubatana kusina kutariswa nekukasira kunonetsa kutsvaga gare gare kana nyaya yaonekwa panguva yekuyedzwa.
- Kusanganisa masisitimu asingaenderane:Kubatanidza zvikamu kubva kumhuri dzakasiyana dzekubatanidza pasina kubvumidzwa kwakajeka kunogadzira kusagadzikana kwakatenderedza zviyero, maprofile, zvisimbiso, uye zvishandiso.
Sei "inotaridzika yakamanikidzwa" haina kukwana
Kubatana kwakapedzwa kunofanirwa kuongororwa maererano nemaitiro ekuisa pane kutaridzika kwekuona chete. Kumaka kana kuongorora maficha, nzvimbo chaiyo yechubhu, chimiro chakakodzera chekutsikisa, uye mibairo-yekumanikidza zvese zvinopa humbowo hunobatsira pane kungotarisa muviri wakakodzera.
Pamapurojekiti anodzokororwa, marekodhi ekuongorora akajairwa anogonawo kubatsira kuona mapatani. Kana majoini akati wandei achiratidza kutsauka kumwe chete, nyaya yacho inogona kunge ine chekuita negadziriro yezvishandiso, kutevedzana kwemushandisi, batch yechikamu, kana nzira yekugadzirira kwete yekukodzera imwe chete.
Joint Quality Inogona Sei Kusimbiswa?
Verification inofanira kuitika pane anopfuura nhanho imwe. Yekutanga nhanho ndeyekuongorora kwechikamu pamberi pegungano. Yechipiri ndeye yekuona uye yedimensional yekuongorora pakarepo mushure mekudzvanya. Yechitatu ndeye system-level yekuyedza pasi pemamiriro anodiwa neiyo projekiti yakatarwa.
| Inspection Stage | Chekutarisa | Nei Zvichikosha | Typical Record |
|---|---|---|---|
| Pamberi peGungano | Saizi yepombi, yakakodzera mhando, chisimbiso, mamiriro epamusoro | Inodzivirira zvisingaenderane zvikamu kubva pakupinda munhevedzano yekuisa | Material uye batch cheki |
| Panguva yeGungano | Insertion udzamu, tool profile, alignment | Inosimbisa kuti kubatana kunotanga kubva kune yakarongwa geometry | Installation checklist |
| Mushure meKudzvanya | Dzvanya mbiri, chubhu chinzvimbo, kuoneka deformation, kumaka | Inopa humbowo hwekukurumidza kuti mubatanidzwa wakatevera maitiro | Rekodhi yekuongorora yekuona |
| System Testing | Kudzvanywa kana kuvuza kuyedzwa kunodiwa neprojekiti | Inotarisa network yapera kwete imwe chete inokwana iri yega | Test report |
Kuongorora kwefekitari uye kuyedzwa kwesaiti kunoshanda zvinangwa zvakasiyana. Zvigadzirwa zvakagadzirwa zvinogona kuyedzwa zvisati zvatumirwa, nepo iyo yakapedzwa pombi network ichiri kuda kwakakodzera yekumisikidza kuongororwa uye nzira dzekumisikidza.
Hunhu hwefekitari uye saiti mhando dzakasiyana kudzora
Kuongorora kwefekitari kunosimbisa kuti zvinhu zvakagadzirwa zvinosangana nezvinodiwa zvekugadzira. Kuyedzwa kwesaiti kunosimbisa kuti network yakaiswa inobata nemazvo mushure mekucheka, kutenderera, kudzvanya, kuisirwa rutsigiro, uye kutumwa. Matunhu ese ari maviri ane basa nekuti kuisirwa kunosuma zvinosiyana zvisipo mufekitori.
Press Joining Inofananidzwa Sei Nedzimwe Nzira?
Hapana nzira yekubatanidza inokodzera yega pombi yega yega. Sarudzo chaiyo inoenderana nezvinhu, mamiriro ebasa, kodhi zvinodiwa, maturusi anowanikwa, nharaunda yekuisa, uye inodiwa kugadzirisa zano.
| Connection Method | Joining Principle | Installation Kufunga | Yakajairika Sarudzo Mibvunzo |
|---|---|---|---|
| Press Joining | Mechanical deformation ine sealing element | Inoda inowirirana press tooling uye inodzorwa kugadzirira | Iyo pombi, chisimbiso, chakakodzera, uye shaya inoenderana system here? |
| Threaded Connection | Shinda dzinopindirana dzinogadzira iyo mechanical interface | Inoda tambo chaiyo, kuomesa, uye kuisa chisimbiso | Iyo shinda yakajairwa uye sealant yakakodzera sevhisi here? |
| Brazed Connection | Filler simbi inobatanidza nzvimbo dzakagadzirirwa uchishandisa kupisa | Inoda kudzorwa kupisa uye matanho akakodzera ekuchengetedza | Kupisa kunogamuchirwa munzvimbo yekuisa? |
| Welded Connection | Permanent metallurgical joint yakagadzirwa ne welding | Inoda welding maitiro ekudzora uye kudzidzira kwakakodzera kana zvichibvira | Iyo application inoruramisa welded system? |
| Adhesive Joining | Kubatana kwemakemikari pakati penzvimbo dzinoenderana | Inoda zvinhu zvinoenderana, kugadzirira, uye kurapa mamiriro | Nguva yekurapa uye kuenderana kwemakemikari kwakakodzera here? |
Chidzidzo chinoshanda hachisi chokuti nzira imwe inofanira kutsiva imwe nzira yose. Pane kudaro, tekinoroji yekubatanidza inofanirwa kusarudzwa zvinoenderana nezvipingamupinyi zvepiping system.
Chii Chinofanira Kutaurwa NeProjekiti Inosanganisira?
Tsanangudzo yakajeka inodzivirira kubatanidzwa kubva pakuderedzwa kune nyore chigadzirwa-zita rekukumbira. Nekutenga, ongororo yeinjiniya, uye kuisirwa, iro rinonyanya kubatsira gwaro rinobatanidza yakakodzera kune yaro nharaunda yekushanda.
- Application:Ziva sevhisi yakaita semvura yemumba, HVAC, process fluid, compressed air, kana imwe application yakatenderwa.
- Pipe Details:State zvinhu, saizi yezita, dhayamita yekunze, ukobvu hwemadziro, uye inoshanda dimensional standard.
- Fitting Details:Rondedzera kubatanidza, gokora, tee, chidzikisiro, chivharo, adapta, kana imwe geometry inodiwa.
- Seal Details:Tsanangura iyo chisimbiso zvinhu uye sevhisi inoenderana zvinodiwa.
- Operating Conditions:Batanidza kushanda nesimba, tembiricha, hunhu hwemvura, uye chero mamiriro asina kujairika ekushanda anoda kuongororwa.
- Nhoroondo Yekubatanidza:Ziva iyo inodiwa yevatori venhau uye yakatenderwa gadziriro yekushandisa.
- Thread Interface:Pazvinoshanda, tsanangura NPT, BSP, BSPT, DIN, kana imwe shinda fomu inodiwa.
- Maitiro:Taura zvinodikanwa zvepasi rese, dunhu, kana purojekiti yakanangana nehunyanzvi zviyero.
- Kuedza:Tsanangura mapoinzi ekuongorora uye yekupedzisira kudzvanywa kana kuvuza bvunzo maitiro.
- Traceability:Rekodha batch, zvinhu, kana ruzivo rwekuzivisa uko maitiro eprojekiti anoida.
Nei kumira kunobatsira akawanda-nhanho mapurojekiti
Mapurojekiti makuru epombi anowanzo sanganisira engineering, kutenga, kubata imba yekuchengetera, kuisirwa, kuongorora, uye kutumira. Danho rega rega rinogona kusuma dudziro yakasiyana yetsanangudzo yechigadzirwa chimwe chete. Chimiro chakarongeka chinochengeta ruzivo rwakakosha rwehunyanzvi hunoonekwa mukati mekuita.
Inobatsirawo kana chirongwa chinosanganisira akati wandei anokodzera geometries. Panzvimbo pekubata gokora rega rega, tee, coupling, uye adapta sechinhu chisina hukama, timu inogona kutsanangura iyo yekubatanidza system kamwe uye yobva yanyora iyo yega zvikamu mukati meiyo hurongwa.
Kuti ruzivo rwechigadzirwa runofanira kuongororwa sei
Madimikira akatsikiswa anofanirwa kutariswa saizi yemhando, miganhu yetembiricha, chiyero chekumanikidza, zvinhu, zvisimbiso sarudzo, chimiro chekubatanidza, uye tambo inoenderana. Kana iyo application inowira padhuze nepakadhindwa muganhu, wongororo yehunyanzvi inofanirwa kusimbisa kana sarudzo yakasarudzwa yakakodzera pane kuvimba netsananguro yechikamu chegeneric.
Chii Chinogadzira Yakavimbika Press Piping System?
Kuvimbika kunobva mukudyidzana kwezvinhu zvakati wandei zvinodzorwa kwete kubva kumuviri wakakodzera wega. Kugadzika kwepombi kuisirwa kunowanzo mhedzisiro yezvinhu zvinoenderana, zviyero zvakaringana, zvikamu zvekuisa chisimbiso zvakakodzera, maturusi akatenderwa, kuiswa kwakarongeka, uye kuyedzwa kwakanyorwa.
Iyo inonyanya kubatsira nzira yekufunga nezve kuvimbika sengetani. Kana chinongedzo chega chega chichidzorwa, chinongedzo chinoshanda zvinofanofungidzira. Kana imwe link ikafuratirwa, kupfava kwekuona kwemaitiro ekudhinda kunogona kuvanza dambudziko rehunyanzvi.
Ndosaka nzira dzekuisa dzakanakisa dzisiri dzakareba. Ndiwo anoona mashoma machinjiro anonyatso kudzora mashandiro ekubatana uye anoita kuti izvo zvakasiyana-siyana zvive nyore kuti nyanzvi dzitarise.
Kugadzirisa Dambudziko Kunogona Kusvikirwa Sei Nehurongwa?
Kana piping joint ikasaita sezvaitarisirwa, kuferefeta kunofanirwa kusimuka kubva kune nyore kuisa cheki kuenda kune yakakura system mamiriro. Kungogara kutsiva zvikamu kunogona kuita kuti dambudziko riome kuronda.
Tanga nekutevedzana kwekubatanidza
Tarisa uone kana pombi yakarurama yakashandiswa, kana kusungirira kuchienderana nechiyero chepombi, kana chisimbiso chaive chakarurama uye chisina kukuvara, uye kana pombi yakasvika pakudzika kwaidiwa. Wobva waona kuti chishandiso chekutsikisa uye shaya zvinoenderana neyakakodzera chimiro.
Wobva watarisa mamiriro ekushandisa
Wongorora iyo chaiyo yepakati, kudzvanywa, tembiricha, uye kuratidzwa kwezvakatipoteredza. Joint yakagadzirirwa sevhisi imwe inogona kunge isingakodzeri imwe kunyangwe zviyero zvakaringana zvakafanana.
Pakupedzisira tarisa network yese
Pipeline inotsigira, kufamba, vibration, zvipingamupinyi zvenzira, kuwedzera kwemafuta, uye zvikamu zviri padyo zvinogona kukanganisa kubatana mushure mekuiswa. Troubleshooting saka inoshanda zvakanyanya kana iyo yekukodzera ichiongororwa sechikamu cheiyo yakazara pombi system.
Mibvunzo Inowanzo bvunzwa
Ndeupi musimboti wepaipi yakadzvanywa?
Iyo pombi inopinzwa mufitting ine chinhu chekuisa chisimbiso, uye mudziyo wakatsaurirwa unodzvanya kufita kutenderedza pombi. Iyo inokonzeresa yekubatanidza inosanganisa kuchengetwa kwemakanika nekuvhara kwakatenderedza yekubatanidza interface.
Ko kujoinwa kwekudzvanya kunoda welding kana murazvo wakavhurika?
Kwete. Kubatana kunoumbwa nemichina uchishandisa chigadziro chekudhinda, saka iyo yekubatanidza kushanda pachayo haidi kupinza kwekupisa kwakabatana ne welding kana brazing.
Pane chero chishandiso chekutsikirira chinogona kushandiswa nechero fitting?
Kwete. Chishandiso uye kuenderana kweshaya zvinoenderana neiyo yekubatanidza profiles. Iyo yekukodzera uye chishandiso musanganiswa inofanirwa kutevedzera zvinodiwa mugadziri zvinodiwa pane kusarudzwa nechitarisiko chete.
Sei chinhu cheO-ring kana chekuisa chisimbiso chakakosha?
Chinhu chekuisa chisimbiso chinogadza chipingamupinyi chinomisa mvura kana gasi kubuda pajoinhi. Zvinhu zvayo zvinofanirwa kuenderana neyakafambiswa svikiro uye tembiricha yekushanda.
Chii chinofanira kuongororwa usati wadzvanya mubatanidzwa?
Tarisa mhando yekukodzera, zviyero zvepombi, chisimbiso chimiro, kugadzirira pombi-kuguma, kudzika kwekuisa, chimiro cheturusi, uye kurongeka. Aya madhiraivha anobatsira kubatana kunotanga kubva kune yakarongwa yekuisa mamiriro.
Ko akatsikirirwa fittings akakodzera HVAC masisitimu?
Akatsikirirwa mafittings anoshandiswa muHVAC maapplication, anosanganisira kudziyisa uye kutonhora maseketi, apo yakasarudzwa sisitimu yakanyatsokodzera mvura, tembiricha, kudzvanywa, pombi zvinhu, uye zvinodiwa zveprojekiti.
Zvigadziriso zvakatsikirirwa zvinogona kushandiswa kugadzira gasi?
Mamwe masisitimu akagadzirwa uye akatenderwa kushandiswa kwegasi, asi sevhisi yegesi inoda mashandisirwo-chaiwo zvikamu, zvisimbiso, zviyero, maitiro ekuisa, uye kuyedzwa. A general water-service fitting haifanire kungobatwa seyakakodzera gasi.
Ndeapi masaizi aripo?
Saizi iripo inotsamira pane chigadzirwa mhuri. Imwe yakadhindwa renji inonyora 1/8 inch kusvika 4 inches, kana DN6 kusvika DN100. Iwo chaiwo anowanikwa saizi, kudzvanywa kwemhando, tembiricha yemhando, uye sarudzo dzekubatanidza dzinofanirwa kusimbiswa kune chaiyo chigadzirwa chakateerana.
Reducer yakasiyana sei nekubatanidza?
Kubatanidza kunowanzo kujoinha zvikamu zvepombi zveiyo yakafanana yakanangana saizi yekubatanidza, nepo inoderedza shanduko pakati pemadhayamita epombi akasiyana. Chimiro chakakodzera chinofanira kuenzanisa nzira uye kuyerera zvinodiwa zvehurongwa.
Chii chinonyanya kukosha pakuwana mubatanidzwa wakavimbika?
Hapana chinhu chimwe chete chinotsiva zvimwe. Kuita kwakavimbika kunoenderana nepombi inoenderana, inokwana, chisimbiso, yakatenderwa chishandiso chimiro, kwakaringana kuisa uye kudzvanya maitiro, uye yakakodzera sisitimu kuyedzwa.
Chii Chinoshanda Sarudzo Yekutarisa?
Usati wapedzisa kubatana kwepombi, iyo inotevera compact cheki runyorwa inogona kubatsira kushandura chikumbiro chechigadzirwa chakazara kuita hunyanzvi hwakakwana.
- Zvepakati zvakasimbiswa:Ziva chaizvo zvichayerera nemutsetse.
- Tembiricha yakasimbiswa:Funga nezvese zvakajairika uye zvakanyanya tembiricha yekushandisa.
- Kumanikidzwa kwakasimbiswa:Enzanisa kumanikidzwa kwesevhisi chaiyo neyakasarudzwa system rating.
- Pipe yakasimbiswa:Simbisa zvinhu, dhayamita, ukobvu hwemadziro, uye dimensional zvinodiwa.
- Chisimbiso chakasimbiswa:Sarudza iyo yekuisa chisimbiso yepakati yebasa uye tembiricha.
- Mbiri yakasimbiswa:Matanidza chimiro chakakodzera neyakabvumidzwa yekutsikisa shaya.
- Interface yakasimbiswa:Simbisa kudzvanya, shinda, vharafu, kana mamwe mapoinzi ekuchinja.
- Standard yakasimbiswa:Ongorora zviyero uye kubvumidzwa kunodiwa kune chinangwa chekunyorera.
- Kuedzwa kwakasimbiswa:Gadzira kuti majoini apera sei uye network yakapedzwa ichaongororwa.
Kana zvinhu izvi zvatsanangurwa zvisati zvaiswa, maitiro ekusarudza anowedzera kujeka. Izvo zvakare zvinova nyore kuenzanisa akasiyana zvigadzirwa zvigadziriso pasina kuvimba nechitarisiko kana generic kushambadzira tsananguro.
Iyo yakanyatsotsanangurwa yekubatanidza sisitimu inofanira pakupedzisira kupindura mibvunzo mitatu: ndeipi svikiro ichapfuura nayo, pasi pemamiriro api ekushanda, uye mubatanidzwa wapedzwa unozoiswa nekusimbiswa sei?
Unoda Rubatsiro Kufananidza Kubatanidza kune Yako Piping System?
Kune mapurojekiti anosanganisira saizi yepombi, yakakodzera geometry, tambo yekubatanidza, yekuisa chisimbiso, mamiriro ekushanda, kana kuenderana kwekuisa, ongororo yakadzama inogona kubatsira kuona iyo yakakodzera kumisikidzwa zvikamu zvisati zvapera.
Bata isu kuti uwane yakarongedzerwa ongororo yekuongorora uye yekubatanidza mhinduro
