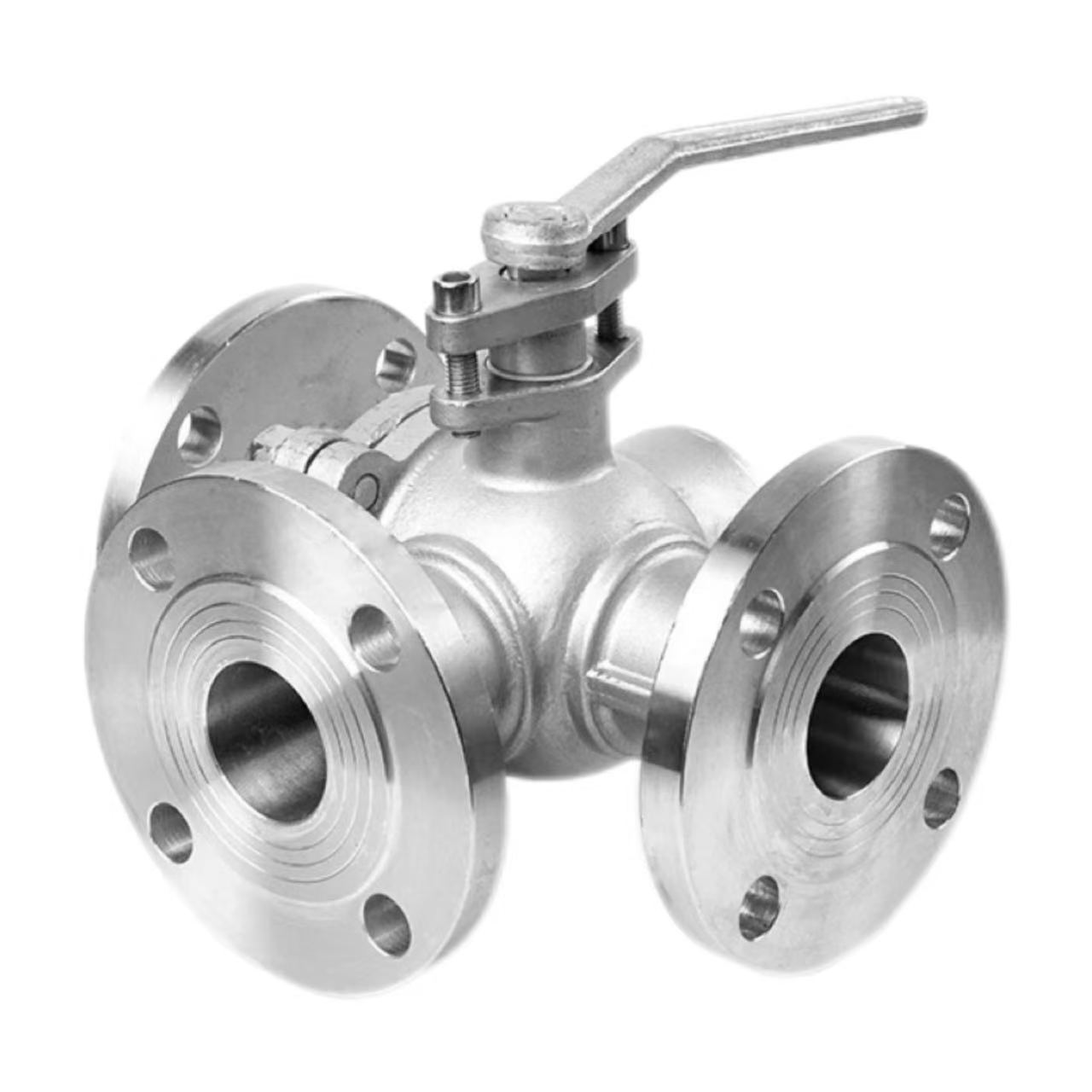

Nzira nhatu-nhatu flange bhora vharafu

Kushanda Nheyo

Nheyo yekushanda yeShenchi fekitori inodzivirira corrosion-resistant three-way flange ball valve inobva paL-shaped or T-shaped channels akachekwa mubhora. Bhora rinoiswa pakati pemuviri wevharuvhu rotenderedzwa nemubato. Kana bhora richitenderera, zviteshi zvinopindirana kana kumisa kubva kune akasiyana mavharuvhu ports, uchiona kuchinjika, kusanganisa, kana kupatsanura kwepakati kuyerera.

Bhora rakaita L:

 Kutenderedza 90 ° kunobvumira iyo yepakati kuti ichinje kubva mukupinza kuenda kune chero yekubuda, inokodzera kudzoreredza mamiriro neinopinza imwe uye maviri ekupinda kana maviri ekupinda uye imwe yekubuda, senge kugovera mvura kune maviri reactor.

Bhora rakaita saT:

Kutenderedza 180 ° kunobvumira madoko ese matatu kuti abatanidzwe panguva imwe chete kana chero zviteshi zviviri kuti zvibatanidzwe, zvakakodzera kusanganisa midhiya miviri wozoburitsa (kubatanidza), kana kupatsanura imwe media kuita zviviri zvinobuda (kutsemuka), senge mumhepo inopisa uye inotonhora yekusanganisa masisitimu.

Product Parameters:

Zita reChigadzirwa: Three-Way Flanged Ball Valve	Zvinodiwa: (1/8"-4") DN6-DN100
Nominal Pressure: PN16	Body Material: WCB, SUS304 (CF8), SUS316L (CF3M)
Maitiro: ANSI, BS, DIN, ISO, JIS	Inoshanda Tembiricha: -20 ℃ ~ +150 ℃ (yakajairwa), kusvika +350 ℃ (yakakwirira tembiricha), pasi kusvika -196 ℃ (yakaderera tembiricha)
Yemukati Metal Material: WCB, SUS304 (CF8), SUS316L (CF3M)	Medium Temperature: High tembiricha, yakaderera tembiricha, yepakati tembiricha, yakajairika tembiricha
Operation Method: Manual	Zvisimbiso: EPDM, PPL
Nzira yekubatanidza: Flange yekubatanidza	Zvishandiso: Mvura, mhepo, gasi, mafuta, zvinwiwa, nezvimwe.
Kwakabva: China	Sample: Samples iripo

Zvakanakira zveFlange Connection:

Shenchi 3-nzira flanged bhora mavharuvhu anoshandisa flange kubatana. Kuenzaniswa netambo dzakabatanidzwa, flange zvinongedzo zvinopa yakanyanya kudzvinyirira kuramba; iyo PN16 chiyero inogona kumira zvakasimba 1.6MPa kumanikidzwa. Disassembly iri nyore, kufambisa nguva dzose pombi yekuongorora uye kugadzirisa. Kuiswa chisimbiso kwakavimbika kunovimbiswa; iyo flange gasket uye mabhaudhi anoshanda pamwechete kubvisa njodzi yekudonha. Inokodzera mapaipi makuru-diameter; kune madhayamita ari pamusoro peDN50, uko kubatanidzwa kwakaomeswa kwakaoma, flanges ndiyo yakajairika sarudzo. Shenchi, Chinese 3-nzira flanged ball valve kugadzira, inopa flanges inoenderana ANSI, BS, DIN, uye JIS zviyero, kusangana nezvinodiwa nevatengi vepasirese.

Kuisa Key Point 1: Flange Alignment

Flange Alignment Paunenge uchiisa Shenchi-nzira nhatu flange bhora valve, zviso zveflange zvinofanira kuenzaniswa. Iwo maviri flanges anofanirwa kuenderana uye akadzikama, nekutsauka kusingapfuuri iyo inotenderwa siyana yeflange gasket. Kumanikidza kurongeka kwebhoti kunokonzeresa kushanduka kwevharuvhu, kukanganisa kutenderera kwebhora uye kuisa chisimbiso kuita. Mushure mekugadzirisa, gasket inofanira kuiswa pakati uye haifaniri kubviswa. A yakaderera-mutengo nzira nhatu flange bhora vharafu haina kuenzana yakaderera quality; Zvigadzirwa zveShenchi zvinopa kurongeka kwakanyanya uye nyore kuisa. Corrosion-resistant three-way flange ball mavharuvhu ane flange surface finishes inoenderana nezviyero, kuve nechokwadi chakanyanya kuvimbika chisimbiso.

Kuisa Nzvimbo Yechipiri: Bolt Kusimbisa

Flange mabhoti anofanira kusimbiswa diagonally mumatanho. Isa torque zvishoma nezvishoma mumatanho 2-3, uchitevera 180 ° diagonal sequence. Usaomesa divi rimwe chete kamwechete, zvikasadaro kusaenzana kumanikidza pane gasket kuchagadzira nzira dzekubuda. Bolt torque inofanira kusangana nemaitiro akaenzana; kuwedzeredza kunokuvadza flange kana mabhaudhi, nepo undertightening ichizoguma nekusakwana chisimbiso. Shenchi 3-nzira flange bhora vharafu fekitori inopa yakakurudzirwa torque tafura kune vanoisa kuti vataure nezvayo. Aya mapoinzi ekuisa akakosha pakuona kwenguva yakareba yekuvuza-isina vharafu kushanda; ndapota nyatsotevera zvakatemwa.

Kuisa Point 3: Pipeline Tsigiro uye Kuchenesa

Usati waiswa, mukati mepombi inofanira kucheneswa kubvisa welding slag, iron filings, jecha, uye kumwe kusvibiswa. Zvinhu zvekune dzimwe nyika zvinopinda mugomba revharuvhu zvinogona kukwenya bhora kana zvisimbiso, zvichitungamira mukudonha. Iyo pombi inofanira kutsigirwa yakazvimirira; vharafu haifaniri kutakura huremu hwepombi. Large-diameter tee flange bhora mavharuvhu anorema; pombi subsidence inogona kudhonza flange kubva-pakati, ichikuvadza chisimbiso. Corrosion-resistant tee flange bhora mavharuvhu akagadzirwa neWCB, SUS304, kana SUS316L zvinhu, ane copper kana Stainless simbi valve core. Mushure mekupedza mapoinzi ekuisa, mubato unofanirwa kutenderera zvakasununguka pasina jamming; vharafu inobva yagadzirira kushandiswa.
