Bulkhead Barbed Fitting

Shenchi inosuma yepamusoro-soro yeBulkhead Barbed Fittings, yakanyatsogadzirirwa kufambisa hose kuburikidza nemidziyo mapaneru ichipa chisimbiso chakavimbika. Yakagadzirwa nemhangura, SUS304, uye SUS316L simbi isina tsvina, zvishongedzo izvi zvinopa kusimba kwakasimba kwekuora uye zvakakodzerwa nehupamhi hwemamiriro ekushanda.

Chigadzirwa Chimiro

Mamiriro eBulkhead Barbed Fitting anosanganisira tambo dzemabulkhead, nati yekukiya, uye mabhawa ehosi yekubatanidza. Panguva yekuisa, gomba chete repaneru rinodiwa; kuomesa nati kunopedza kugadzirisa uye kuisa chisimbiso.

Iyo barbed yekupedzisira inoratidzira anti-slip groove dhizaini, kuve nechokwadi chekubatana kwakachengeteka kana ichishandiswa ne hose clamp. Aya mafittings anoshandiswa zvakanyanya mukudzora makabati, midziyo yekurapa mvura, zviridzwa zvekurapa, uye zvimwe zvine chekuita neminda.

Zvigadzirwa Zvinotsanangurwa

Zvakanakira Zvimiro

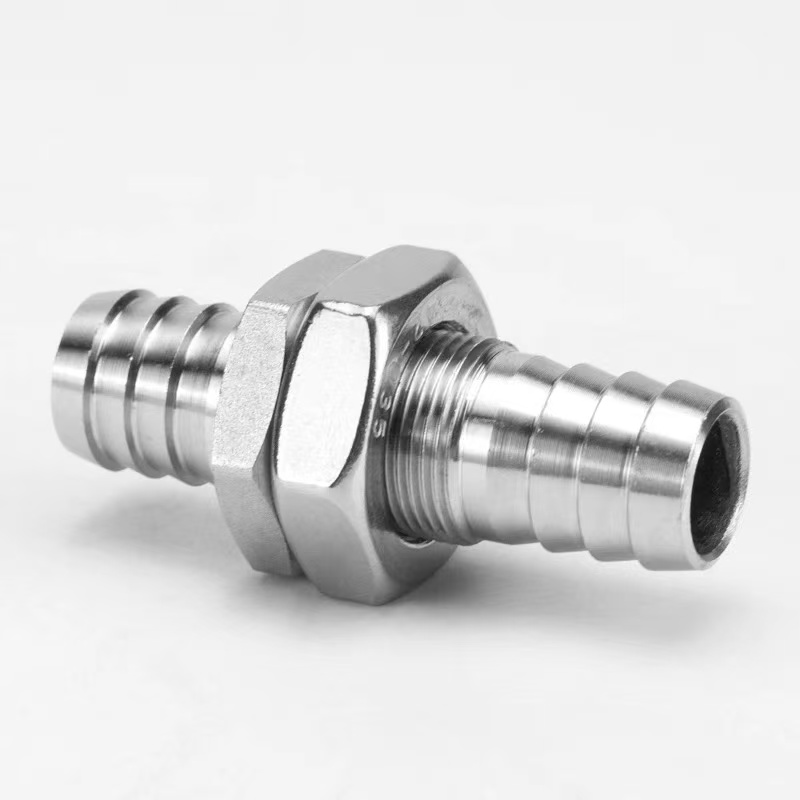

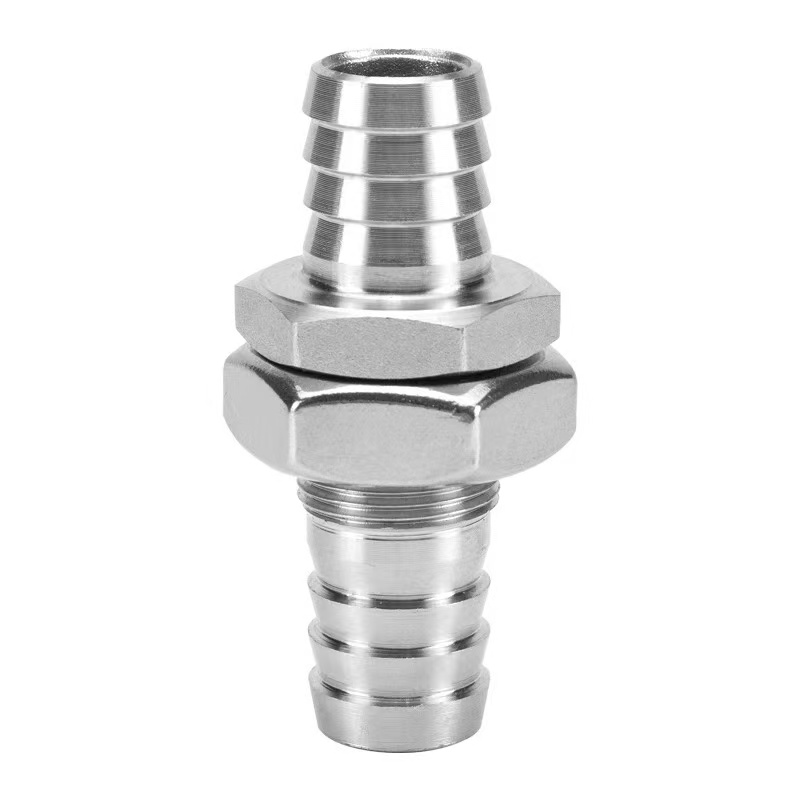

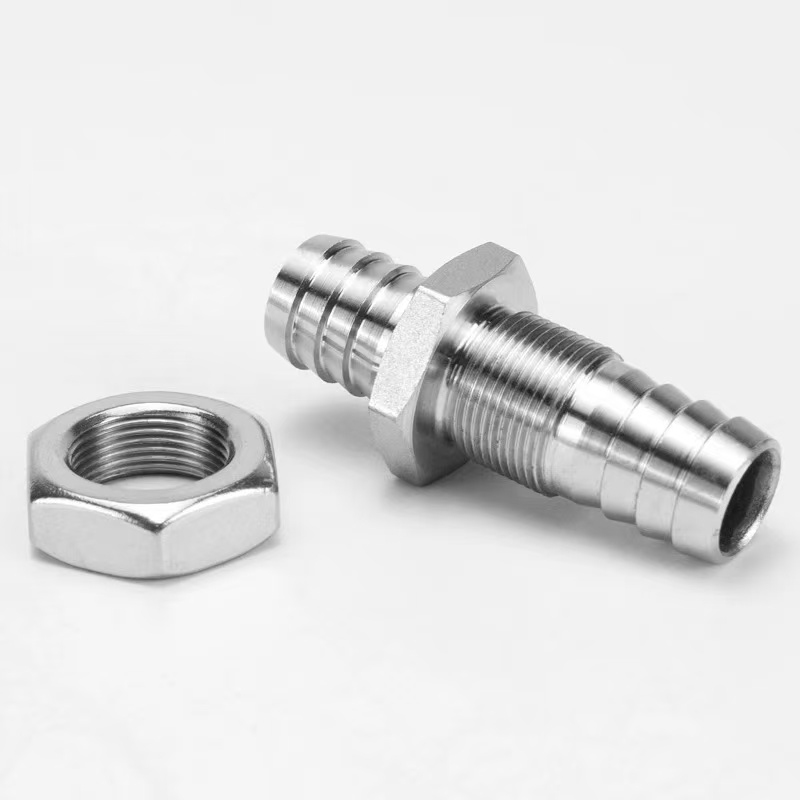

Iyo Bulkhead Barbed Fitting ipombi yakanyatsogadzirirwa kufambisa hose kuburikidza nemidziyo mapaneru, enclosures, kana bulkheads uku ichipa chisimbiso chakamisikidzwa. Chimiro chayo chikuru chinosanganisira chikamu chetambo yebulkhead, nut yekuvhara, gasket yekuisa chisimbiso, uye yekubatanidza hose hose. Panguva yekuisa, gomba chete reiyo dhayamita inoenderana inoda kuitwa pane pani. Chikamu chetambo chekugadzirisa chinopfuudzwa nepakati pegomba, uye nut inosimbiswa kubva kune rumwe rutivi kuti ipedze kugadzirisa uye kuvhara.

1. Bulkhead Fixing Structure:Kureba kwechikamu cheshinda kunogadziriswa kune zvakajairika mapaneru ukobvu. Kana iyo nati yekuvhara yakasimbiswa, inoumba kugadzika kwakasimba nepaneru, kuve nechokwadi kuti iyo yekukodzera inoramba yakachengeteka kunyangwe pasi pesimba rekudhonza kunze.

2. Barbed Hose Connection:Rimwe kana mativi ese maviri epaneru ane mazino ane minzwa ane tepi ekuisa hose uye kugadzira chinongedzo chakavharwa nehose clamp. Iyo barbed yekupedzisira inotora yakapetwa kaviri anti-slip groove dhizaini, ichipa yakakwira zvakanyanya kudhonza-kunze kuramba pane zvakajairwa mafita.

3. Sealing System:Rubber gaskets kana O-mhete zvinopihwa pamativi ese epaneru. Kana nati yakasimbiswa, gasket yekuvharisa inomanikidzwa, ichiwana isina mvura uye guruva-kusunga chisimbiso pakuvhurwa kwepaneru, ine mwero wekudzivirira unosvika IP65 kana kupfuura.

Installation Method

Shenchi's durable Bulkhead Barbed Fittings zviri nyore kuisa. Kubatana kwakachengeteka uye kwakavharwa kunogona kuwanikwa mumatanho matanhatu chete:

Danho 1: Panel Hole Kugadzirira

Gadzira gomba rakatenderera rinoenderana pane panhizha zvichienderana nekunze kwedhayamita yechikamu cheshinda. Ita shuwa kuti mupendero wegomba wakatsetseka uye hauna burr-kudzivisa kukuvadza gasket yekuisa chisimbiso.

Nhanho 2: Isa iyo Chisimbiso Gasket

Svetera iyo inosanganisirwa EPDM yekuisa chisimbiso gasket pachikamu cheshinda, uchiitsimbirira ichipesana nechigadziko chakakodzera. Kana kuiswa chisimbiso kuchidiwa pamativi ese epaneti, isa imwe gasket kune rumwe rutivi.

Danho rechitatu: Isa kuburikidza nePaneli

Isai chikamu cheshinda mugomba kubva kune rimwe divi repaneru, kuve nechokwadi chekuti chigadziko chakakodzera chinobata mapaneru ine chisimbiso gasket pakati.

Nhanho 4: Simbisa iyo Locking Nut

Nyora nati yekukiya pachikamu cheshinda kubva kune rumwe rutivi rwepaneru, uye zvishoma nezvishoma simbisa iyo nechipanera. Inokurudzirwa torque: 5-8 N · m yemidziyo yendarira uye 8-12 N · m yesimbi isina tsvina. Chengetedza muviri wakakodzera wakamira panguva yekusimbisa.

Danho 5: Batanidza Hose

Sarudza chirevo apo dhayamita rekunze rebarb rakakura 0.5-1 mm pane hose yemukati dhayamita. Isa hose yakatwasuka kumucheto webarbed kusvika yasvika pagadziko. Pakushandisa kwepamusoro-soro, shandisa simbi isina tsvina hose clamp uye uisungirire pakati pechipiri nechitatu barbs.

Nhanho 6: Simbisa Kutendeseka Muedzo

Ita static pressure test at 1.5 times the working pressure. Kana pasina kuvuza kwemaminetsi matatu, kuiswa kwacho kunokodzera.
